S310S-24P4J

This switch delivers a switching capacity of 104 Gbit/s and a forwarding rate of 77 Mpps. It features 48 GE RJ45 PoE+ ports and 4 GE SFP ports, with a PoE budget of 380 W. Built with a metal chassis, it supports rack, desk, and wall mounting. Power consumption ranges from 34.04 W (static) to 462.8 W under full PoE load. It includes dual built-in fans with intelligent air cooling, operates between –5°C to +50°C, and supports 90–290 V AC input with surge protection for reliable performance.

S220-48P4S

This switch delivers a switching capacity of 104 Gbit/s and a forwarding rate of 77 Mpps. It features 48 GE RJ45 PoE+ ports and 4 GE SFP ports, with a PoE budget of 380 W. Built with a metal chassis, it supports rack, desk, and wall mounting. Power consumption ranges from 34.04 W (static) to 462.8 W under full PoE load. It includes dual built-in fans with intelligent air cooling, operates between –5°C to +50°C, and supports 90–290 V AC input with surge protection for reliable performance.

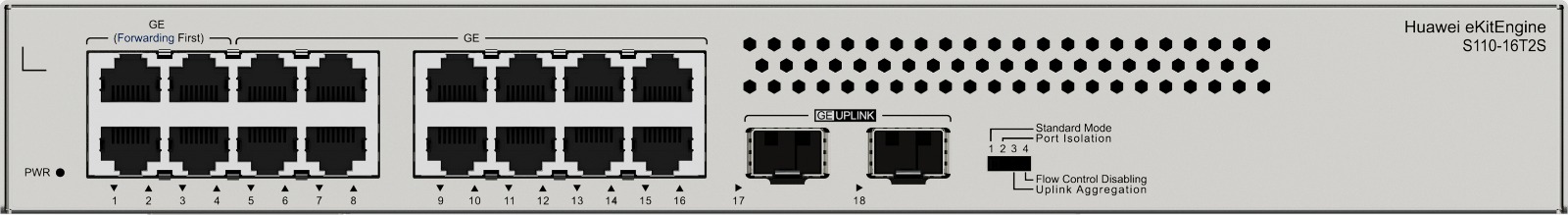

S110-16T2S

This switch offers a switching capacity of 36 Gbit/s and a forwarding rate of 26.78 Mpps. It features 16 GE RJ45 ports, built with a metal chassis and supporting rack, desk, and wall mounting. Power consumption is low, ranging from 3 W (static) to 12 W (maximum). It uses a built-in AC power supply (90–264 V), supports natural heat dissipation (fanless), and operates between 0°C to +40°C for reliable performance.

S220-48P4X

This switch delivers a switching capacity of 176 Gbit/s and a forwarding rate of 131 Mpps. It features 48 GE RJ45 PoE+ ports and 4 × 10G SFP+ ports, with a PoE budget of 380 W. Built with a metal chassis, it supports rack, desk, and wall mounting. Power consumption ranges from 34.04 W (static) to 462.8 W under full PoE load. It includes dual built-in fans with intelligent air cooling, operates between –5°C to +50°C, and supports 90–290 V AC input with surge protection for reliable performance.

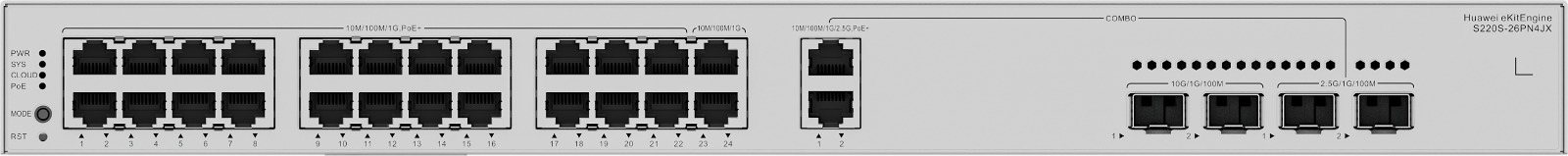

S220S-26PN4JX

This switch delivers a switching capacity of 98 Gbit/s and a forwarding rate of 73 Mpps. It features 24 GE RJ45 ports (22 PoE+), 2 × 2.5GE combo ports (RJ45 + SFP), and 2 × 10G SFP+ ports, with a PoE budget of 400 W. Built with a metal chassis, it supports rack, desk, and wall mounting. Power consumption ranges from 19.56 W (static) to 484.27 W under full PoE load. It includes dual built-in fans with intelligent air cooling, operates between –5°C to +45°C, and supports 90–290 V AC input with surge protection for reliable performance.

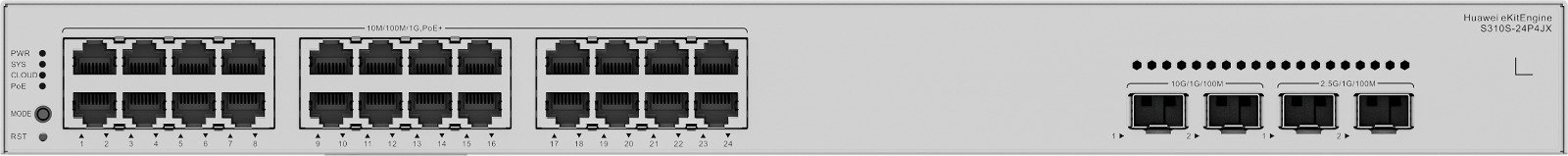

S310S-24P4JX

This switch delivers a switching capacity of 98 Gbit/s and a forwarding rate of 73 Mpps. It features 24 GE RJ45 PoE+ ports, 2 × 2.5G SFP ports, and 2 × 10G SFP+ ports, with a PoE budget of 400 W. Built with a metal chassis, it supports rack, desk, and wall mounting. Power consumption ranges from 18.74 W (static) to 482.55 W under full PoE load. It includes dual built-in fans with intelligent air cooling, operates between –5°C to +45°C, and supports 90–290 V AC input with surge protection for reliable performance.

S620-16X8YZ

This high-end switch delivers a switching capacity of 1120 Gbit/s and a forwarding rate of 833 Mpps. It features 16 × 10G SFP+ ports and 8 × 25G SFP28 ports, with iStack support for up to 9 switches, along with 1 card slot and 2 power slots for scalability. Built with a metal chassis, it supports rack and desk mounting. Power consumption ranges from 50 W (static) to around 85 W at full load. It supports dual (1+1) pluggable power modules for redundancy, includes pluggable fans with intelligent cooling, and operates between –5°C to +45°C with wide voltage support for reliable performance.

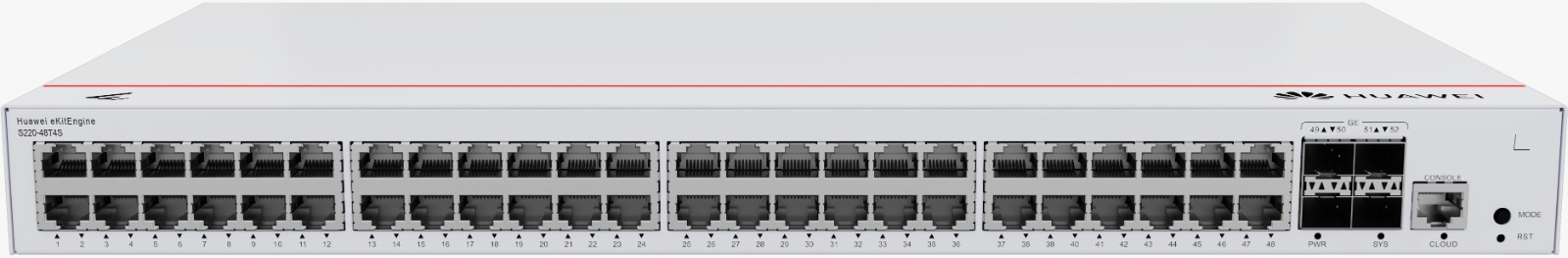

S220-48T4S

S310-48T4X

This switch delivers a switching capacity of 176 Gbit/s and a forwarding rate of 131 Mpps. It features 48 GE RJ45 ports and 4 × 10G SFP+ ports, with iStack support for stacking up to 4 switches. Built with a metal chassis, it supports rack, desk, and wall mounting. Power consumption ranges from 18.8 W (static) to 44.3 W (maximum). It includes a built-in fan with intelligent air cooling, operates between –5°C to +50°C, and supports 90–264 V AC input with surge protection for reliable performance.

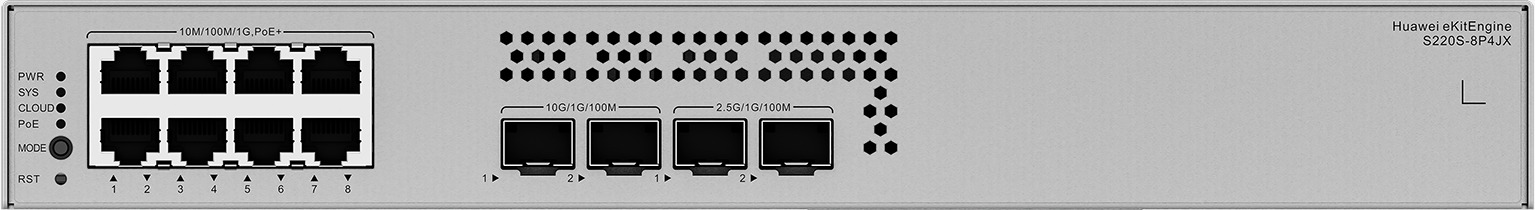

S220S-8P4JX

This switch delivers a switching capacity of 66 Gbit/s and a forwarding rate of 49 Mpps. It features 8 GE RJ45 PoE+ ports, 2 × 2.5G SFP ports, and 2 × 10G SFP+ ports, with a PoE budget of 128 W. Built with a metal chassis, it supports rack, desk, and wall mounting. Power consumption ranges from 13.93 W (static) to 161.56 W under full PoE load. It uses a built-in AC power supply (90–300 V), supports natural heat dissipation (fanless), and operates between –5°C to +40°C for reliable performance.

S220S-10PN4JX

This switch delivers a switching capacity of 76 Gbit/s and a forwarding rate of 57 Mpps. It features 8 GE RJ45 ports (6 PoE+), 2 × 2.5GE RJ45 PoE+ ports, 2 × 2.5G SFP ports, and 2 × 10G SFP+ ports, with a PoE budget of 128 W. Built with a metal chassis, it supports rack, desk, and wall mounting. Power consumption ranges from 14.73 W (static) to 162.36 W under full PoE load. It uses a built-in AC power supply (90–300 V), supports natural heat dissipation (fanless), and operates between –5°C to +40°C for reliable performance.

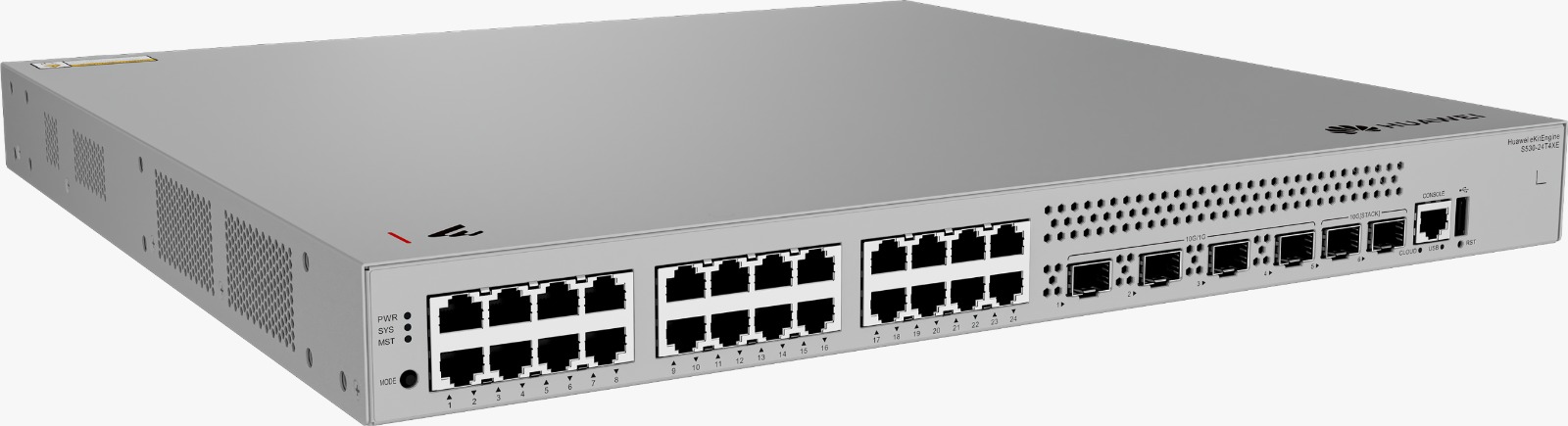

S530-24T4XE

This switch delivers a switching capacity of 168 Gbps and a forwarding performance of 125 Mpps. It features 24 × 10/100/1000Base-T ports, 4 × 10GE SFP+ ports, and 2 × 10GE stack ports, with an included 80W AC power module and 1+1 power supply backup for reliability. Designed for stable operation, it supports temperatures from –5°C to +50°C and can be safely stored between –40°C to +70°C.

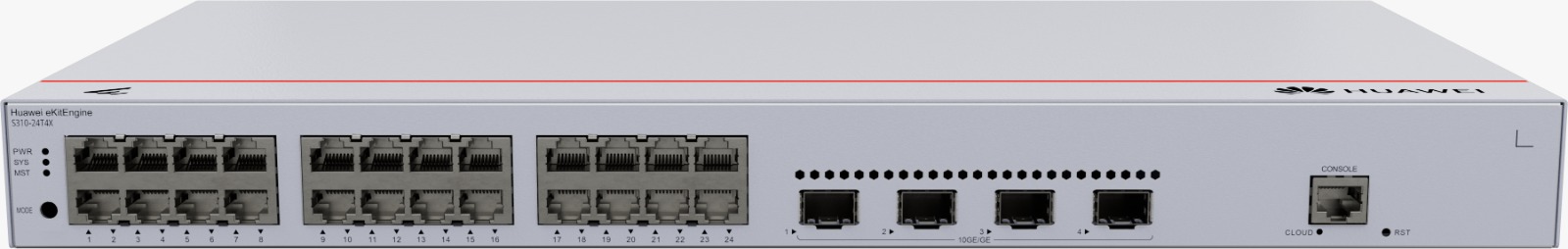

S310-24T4X

This switch delivers a switching capacity of 128 Gbit/s and a forwarding rate of 95 Mpps. It features 24 GE RJ45 ports and 4 × 10G SFP+ ports, with iStack support for stacking up to 4 switches. Built with a metal chassis, it supports rack, desk, and wall mounting. Power consumption ranges from 19 W (static) to 35.04 W (maximum). It includes a built-in fan with intelligent air cooling, operates between –5°C to +50°C, and supports 90–264 V AC input with surge protection for reliable performance.

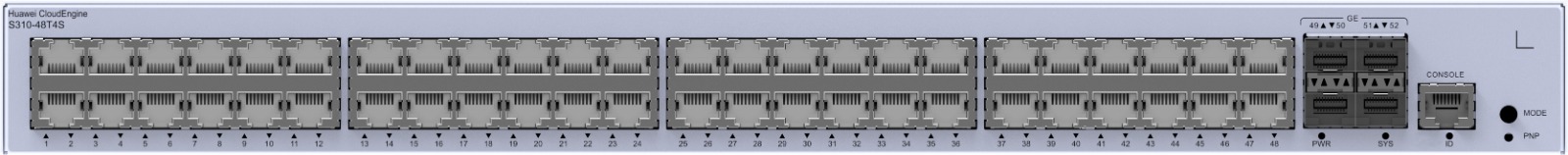

S310-48T4S

This switch delivers a switching capacity of 104 Gbit/s and a forwarding rate of 77 Mpps. It features 48 GE RJ45 ports and 4 GE SFP ports, with iStack support for stacking up to 4 switches. Built with a metal chassis, it supports rack, desk, and wall mounting. Power consumption ranges from 27.55 W (static) to 52.05 W (maximum). It includes a built-in fan with intelligent air cooling, operates between –5°C to +50°C, and supports 90–264 V AC input with surge protection for reliable performance.

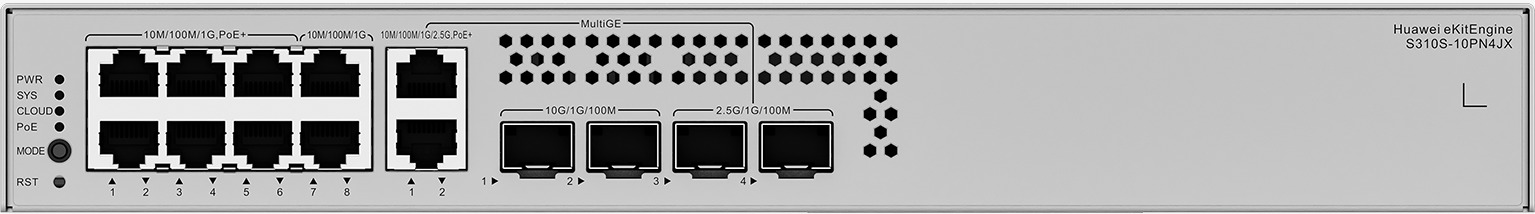

S310S-10PN4JX

This switch delivers a switching capacity of 76 Gbit/s and a forwarding rate of 56 Mpps. It features 8 GE RJ45 ports (6 PoE+), 2 × 2.5GE RJ45 PoE+ ports, 2 × 2.5G SFP ports, and 2 × 10G SFP+ ports, with a PoE budget of 128 W. Built with a metal chassis, it supports rack, desk, and wall mounting. Power consumption ranges from 14.73 W (static) to 162.36 W under full PoE load. It uses a built-in AC power supply (90–300 V), supports natural heat dissipation (fanless), and operates between –5°C to +40°C for reliable performance.

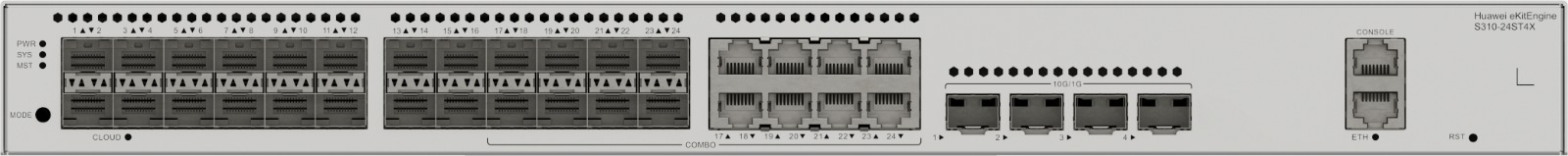

S310-24ST4X

This switch delivers a switching capacity of 128 Gbit/s and a forwarding rate of 96 Mpps. It features 16 GE SFP ports, 8 GE combo ports (RJ45 + SFP), and 4 × 10G SFP+ ports, with iStack support for stacking up to 4 switches. It supports rack, desk, and wall mounting. Power consumption ranges from 17.57 W (static) to 41.7 W (maximum). It includes dual built-in fans with intelligent air cooling, operates between –5°C to +50°C, and supports 90–264 V AC input with surge protection for reliable performance.

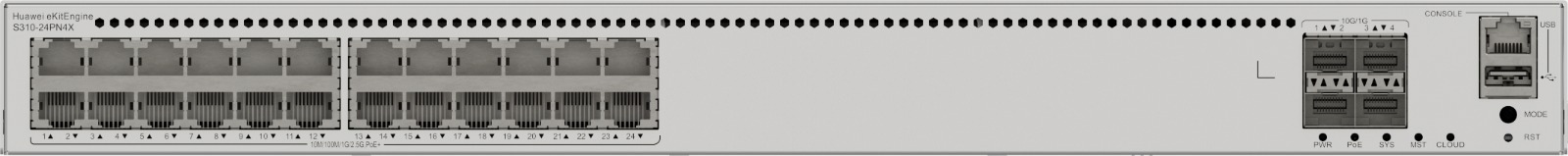

S310-24PN4X

This high-performance switch delivers a switching capacity of 200 Gbit/s and a forwarding rate of 144 Mpps. It features 24 × 2.5GE RJ45 PoE+ ports and 4 × 10G SFP+ ports, with PoE support up to 400 W and iStack capability for stacking up to 4 switches. Built with a durable metal chassis, it supports rack and desk mounting. Power consumption ranges from 37.1 W (static) to 517.3 W under full PoE load. It includes dual built-in fans with intelligent air cooling, operates between –5°C to +45°C, and supports 90–290 V AC input with surge protection for reliable performance.

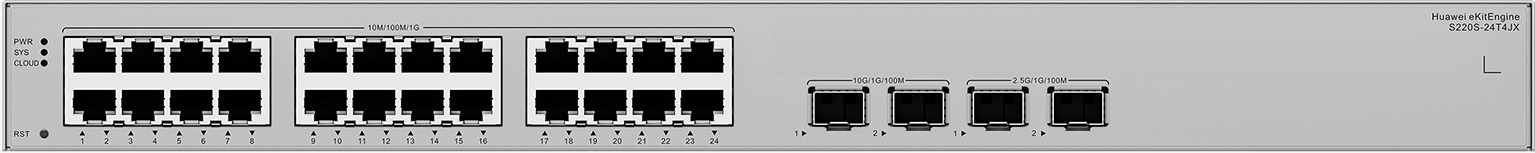

S220S-24T4JX

This switch delivers a switching capacity of 98 Gbit/s and a forwarding rate of 73 Mpps. It features 24 GE RJ45 ports, 2 × 2.5G SFP ports, and 2 × 10G SFP+ ports, built with a durable metal chassis and supporting rack, desk, and wall mounting. Power consumption is efficient, ranging from 11.14 W (static) to 21.9 W (maximum). It uses a built-in AC power supply (90–264 V), supports natural heat dissipation (fanless), and operates between –5°C to +40°C for stable performance.

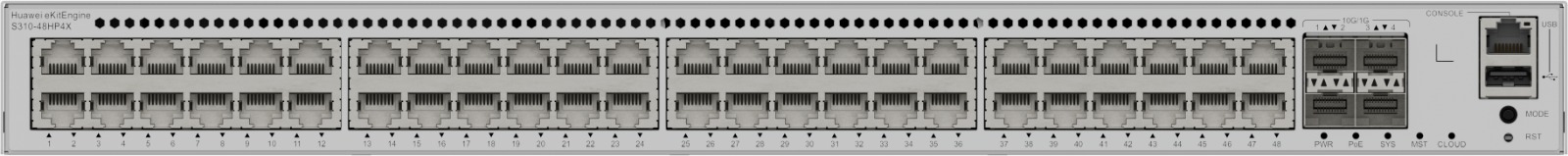

S310-48HP4X

This high-performance switch delivers a switching capacity of 176 Gbit/s and a forwarding rate of 131 Mpps. It features 48 GE RJ45 PoE+ ports and 4 × 10G SFP+ ports, with a powerful PoE budget of 846 W and iStack support for up to 4 switches. Built with a metal chassis, it supports rack and desk mounting. Power consumption ranges from 36.75 W (static) to 991.74 W under full PoE load. It includes dual built-in fans with intelligent air cooling, operates between –5°C to +50°C, and uses a pluggable power supply (90–290 V AC) with surge protection for reliable performance.

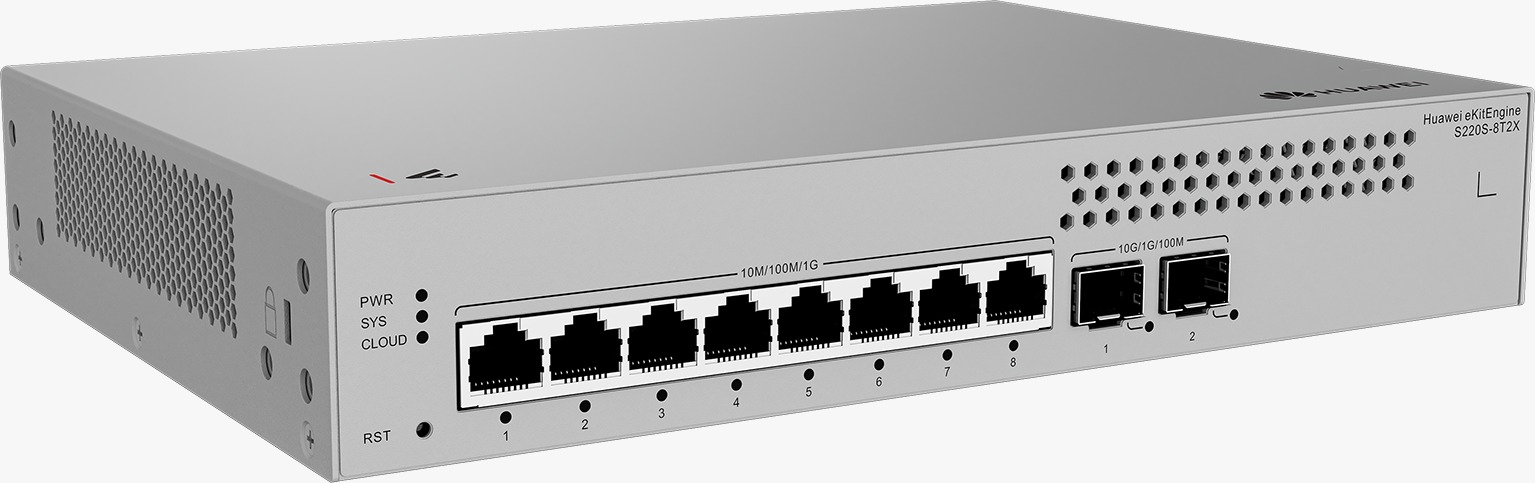

S220S-8T2X

This switch provides a switching capacity of 56 Gbit/s and a forwarding rate of 42 Mpps. It features 8 GE RJ45 ports and 2 × 10G SFP+ ports, built with a durable metal chassis and supporting rack, desk, and wall mounting. Power consumption is low, ranging from 5.18 W (static) to 10.94 W (maximum). It uses a built-in AC power supply (90–264 V), supports natural heat dissipation (fanless), and operates between –5°C to +40°C for stable performance.

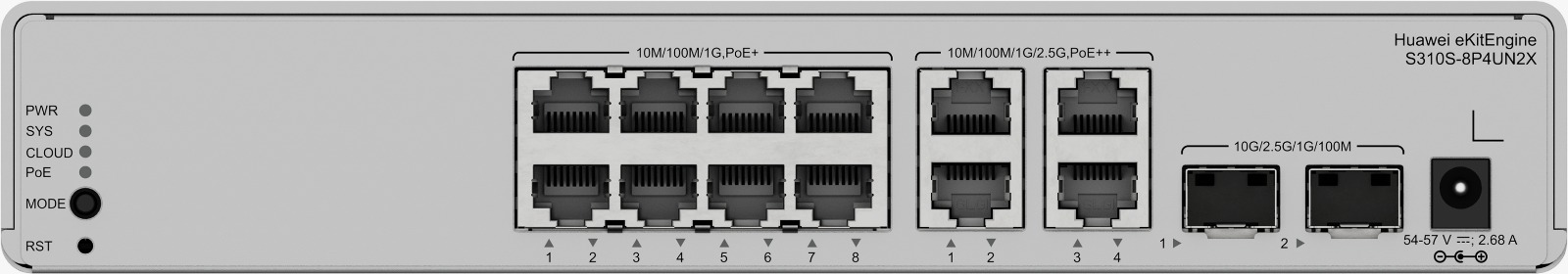

S310S-8P4UN2X

This compact switch features 8 GE RJ45 PoE+ ports, 4 × 2.5GE RJ45 PoE++ ports, and 2 × 10G SFP+ uplink ports. It supports PoE with a total budget of 125 W and comes in a durable metal chassis with rack, desk, and wall mounting options. Power consumption ranges from 14.6 W (static) to 160.2 W at full PoE load. It uses a power adapter (170–264 V AC input) and operates fanless with natural heat dissipation. Designed for stable performance, it works within –5°C to +45°C and supports high humidity environments.

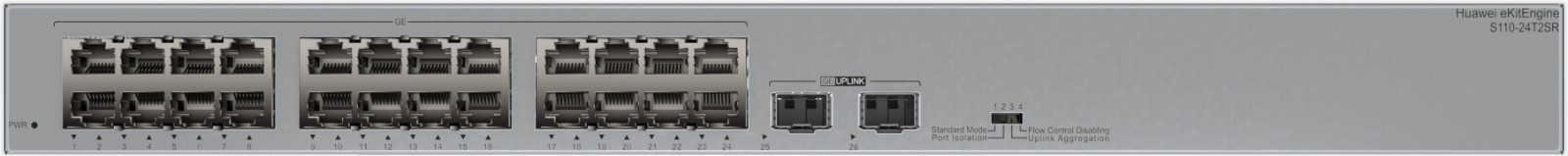

S110-24T2SR

This compact switch features up to 26 ports in a 1U metal chassis, supporting rack, desk, and wall mounting. It is lightweight at 1.8 kg and designed for efficient operation with low power consumption (16 W typical, 17 W maximum). It uses a built-in AC power supply (90–264 V) and supports natural heat dissipation without fans. The device operates in temperatures from 0°C to 40°C with high humidity tolerance, and includes surge protection for reliable and stable performance.

S310-48P4X

This switch delivers a switching capacity of 176 Gbit/s and a forwarding rate of 131 Mpps. It features 48 GE RJ45 PoE+ ports and 4 × 10G SFP+ ports, with PoE support up to 380 W and iStack capability for stacking up to 4 switches. Built with a durable metal chassis, it supports rack, desk, and wall mounting. Power consumption ranges from 34.04 W (static) to 462.8 W under full PoE load. It includes dual built-in fans with intelligent air cooling, operates between –5°C to +50°C, and supports 90–290 V AC input with surge protection for reliable performance.

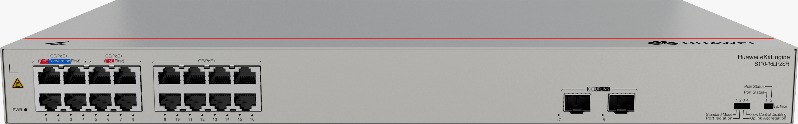

S110-16LP2SR

This switch offers a switching capacity of 36 Gbit/s and a forwarding rate of 26.78 Mpps. It features 16 GE RJ45 PoE+ ports with a maximum PoE power budget of 124 W and supports rack, desk, and wall mounting. Power consumption reaches up to 160 W under full PoE load (22 W without PoE). It comes with a built-in AC power supply (90–300 V AC), and has a sturdy design weighing 3.0 kg (without packaging), making it suitable for reliable network deployments.

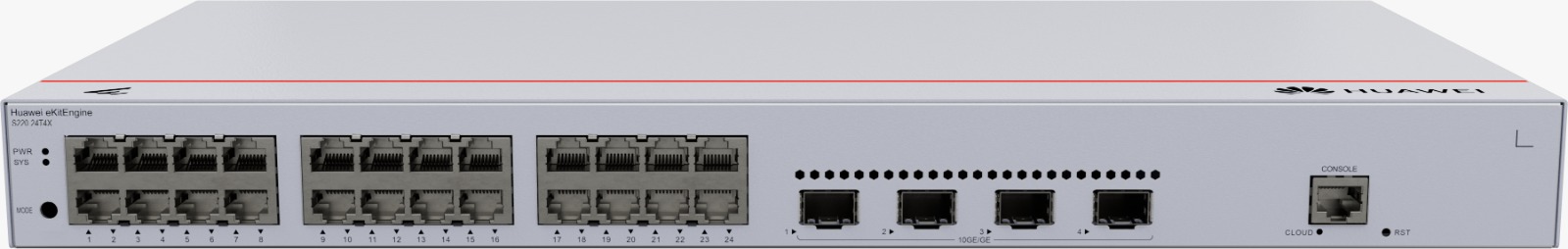

S220-24T4X

Switching capacity 128 Gbit/s Packet forwarding rate 95 Mpps GE RJ45 24 (1G/100M/10M) 10G SFP+ 4 (10G/1G) Certification EMC certification Safety certification Manufacturing certification Chassis material Metal Static power consumption [W] 19.00 Dimensions without packaging (H x W x D) [mm(in.)] Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.) Dimensions with packaging (H x W x D) [mm(in.)] 90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.) Installation type Rack mounting,Desk mounting,Wall mounting Weight without packaging [kg(lb)] 2.32 kg (5.11 lb) Weight with packaging [kg(lb)] 3.44 kg (7.58 lb) Typical power consumption [W] 27.27 Maximum power consumption [W] 35.04 Number of fans modules 1 Long-term operating temperature [°C(°F)] -5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.) Long-term operating relative humidity [RH] 5% RH to 95% RH, non-condensing Power supply mode AC built-in Input voltage range [V] AC input: 90 V AC to 264 V AC; 45 Hz to 65 Hz Power supply surge protection [kV] Differential mode: ±6 kV; common mode: ±6 kV Types of fans Built-in Heat dissipation mode Air cooling for heat dissipation, intelligent fan speed adjustment Airflow direction Air intake from left and front, air exhaustion from right

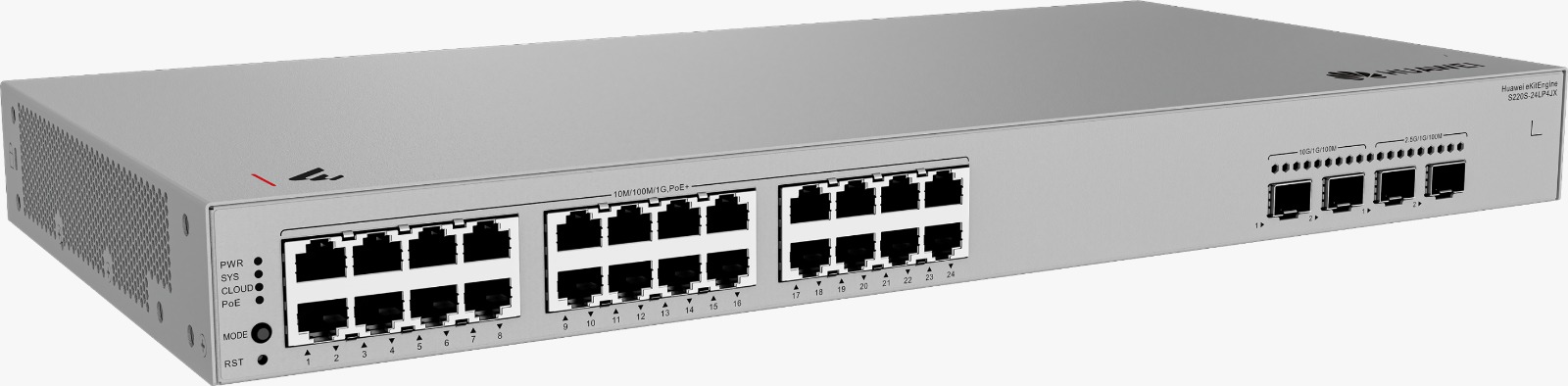

S220S-24LP4JX

This switch delivers a switching capacity of 98 Gbit/s and a forwarding rate of 73 Mpps. It features 24 GE RJ45 PoE+ ports and 2 × 10G SFP+ ports, with PoE support up to 195 W. Built with a durable metal chassis, it supports rack, desk, and wall mounting. Power consumption ranges from 18.74 W (static) to 277.55 W under full PoE load. It includes dual built-in fans with intelligent air cooling, operates between –5°C to +45°C, and supports 90–290 V AC input with surge protection for reliable performance.

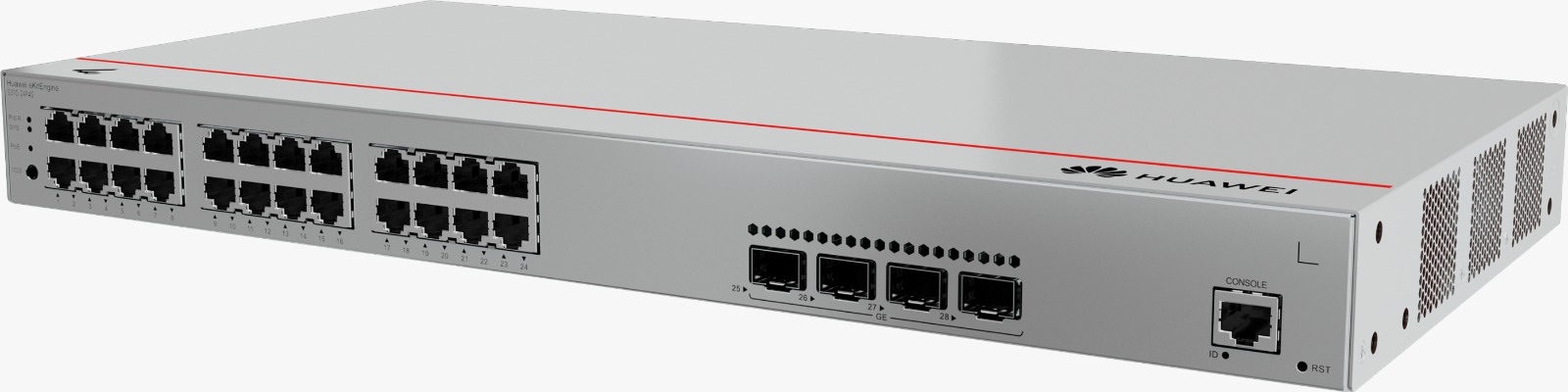

S310-24P4S

This switch offers a switching capacity of 56 Gbit/s and a forwarding rate of 42 Mpps. It includes 24 GE RJ45 PoE+ ports and 4 GE SFP ports, with PoE support up to 400 W and iStack capability for stacking up to 4 switches. Built with a metal chassis, it supports rack, desk, and wall mounting. Power consumption ranges from 30.82 W (static) to 491.66 W at full PoE load. It features dual built-in fans with intelligent air cooling, operates between –5°C to +50°C, and supports 90–290 V AC input with surge protection for stable and reliable performance.

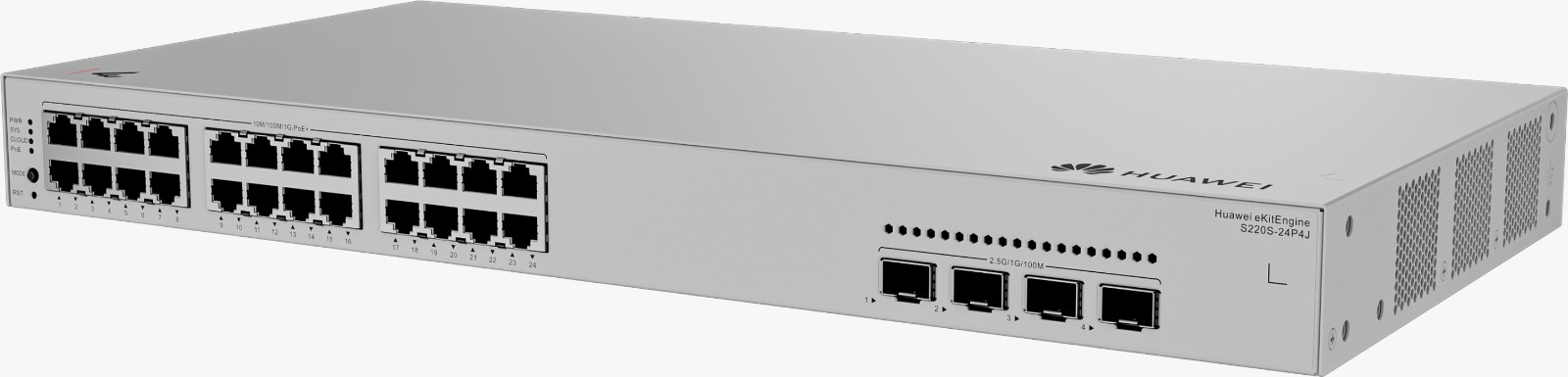

S220S-24P4J

This network switch delivers a switching capacity of 68 Gbit/s and a forwarding rate of 51 Mpps. It features 24 GE RJ45 PoE+ ports and 4 × 2.5G SFP ports, with a maximum PoE power budget of 400 W. Built with a metal chassis, it supports rack, desk, and wall mounting. Power consumption ranges from 18.74 W (static) to 482.55 W under full PoE load. It includes dual built-in fans with intelligent air cooling, operates between –5°C to +45°C, and supports an input voltage of 90–290 V AC with surge protection for reliable performance.
